  Home >> Brand of Radio >> ICOM IC-M25 Marine Handheld Radio Marine VHF Waterproof Walkie Talkie

ICOM IC-M25 Marine Handheld Radio Marine VHF Waterproof Walkie Talkie [Comments(0)|Leave your Comment]
Item#:12071302422679
Score:0  (Score change Discount Voucher)
Weight:2 kg.
List Price:$196.00
Price:$90.00
You Save:$106.00
Qty:

Prev:Hot Sell BF-918UV 3 Way 8W High Power Walkie Talkie Tri Dual Band

Next:ICOM IC-M25 EURO - Handheld Marine VHF Radio - UK Version - Blue

detail

Related

Comment

Payment

Shipping

Item Name: ICOM IC-M25 Marine Handheld Radio Marine VHF Waterproof Walkie Talkie
USD 142.80
Quantity: 0
The item you are trying to view does not exist or was suspended by the site admin.
Item Code: ICOM IC-M25
 Ask a question about this

 Add my watch 0




Description



ICOM IC-M25

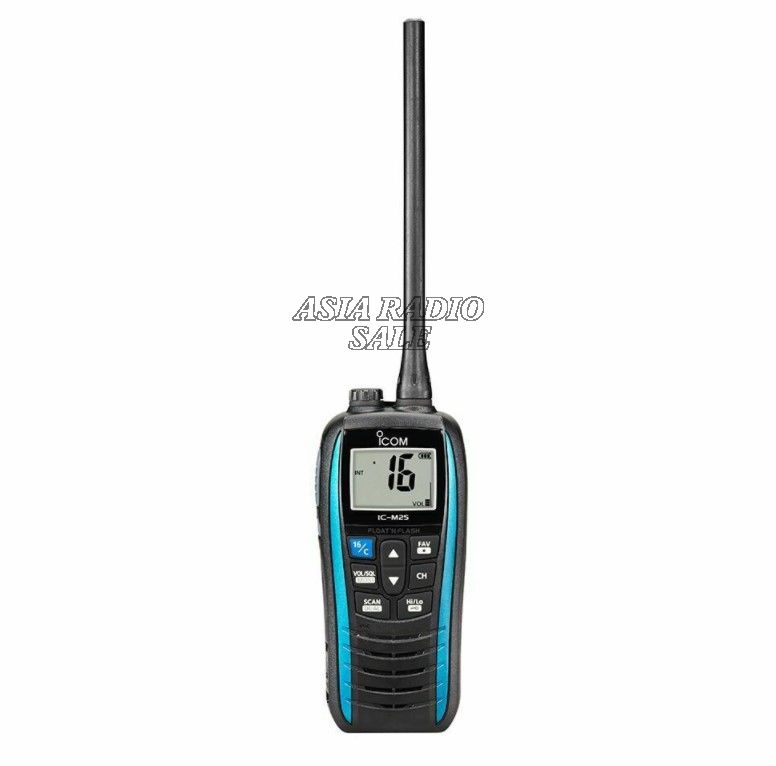

ICOM IC-M25 Marine Handheld Radio Marine VHF Waterproof Walkie Talkie



Great features and style are the traits of Icom’s IC-M25 floating marine VHF radio, which floats and flashes when dropped into the water. Sporting a slim design, this handheld has the lightest body in the market for a floating VHF radio, just 7.8oz. New for an Icom marine handheld, this radio requires a USB connector for convenient charging from a variety of electronic devices!

This model has been pre-programmed with Hong Kong Channels 96 and 99

Features

  • Large LC with large channel number and status icons

  • Front panel buttons provide simple and straightforward operation

  • AquaQuake™ draining function removes water from the speaker

  • 4-step battery life indicator

  • Weather channel with weather alert

  • Dual/Tri-watch functions

  • Instant access to Channel 16 or programmable call channel

  • Favorite channel function

  • Monitor function opens noise squelch

  • Auto scan function

  • LCD auto backlighting



General specifications



Frequency range: TX: 156.000 ~ 161.450 MHz RX: 156.000 ~ 163.425 MHz

Modulation type: 16K0G3E (FM)

Channel: All international channels

Antenna impedance: 50 ohms

Power required: 3.7V DC nominal

Absorption (@ 3.7Vcc): TX: 2.3A RX: 300 mA / 200 mA (maximum audio)

Working temperature: -15 ° C ~ + 55 ° C

Dimensions: 56.6 (length) x 134.2 (A) x 30.5 (P) mm except for protrusions

Weight: 220 grams. (Using FA-SC59V and MB-133)

Microphone impedance: 2 kOhm



transmitter

Output power: Hi: 5W / Low: 1W

Maximum frequency deviation: ± 5.0 kHz

Frequency error: ± 1.5 kHz

Spurious emission: 0.25μW

Adjacent channel power: 70 dB

Residual modulation: 40 dB

Harmonic distortion: <10% (deviation 60%)

Audio response: from 300Hz to 3000Hz, + 1dB ~ -3ddB octave 6dB



receiver

F.I. Value: 1 ^ 21.7 MHz 2 ^ 450 kHz

Sensitivity: -6dBμemf (20 dB SINAD)

Squelch sensitivity: -6dBμemf

Adjacent channel selectivity: 70 dB

Spurious response: 70 dB

Intermodulation rejection: 68 dB

Residual noise: 40 dB

Audio response: from 300Hz to 3000Hz, + 1dB ~ -3ddB octave 6dB

Audio output level: External speaker: 200 mW (load 4 Ohm)

                       Built-in speaker: 550 mW (1kHz) typical (12 ohm load)
