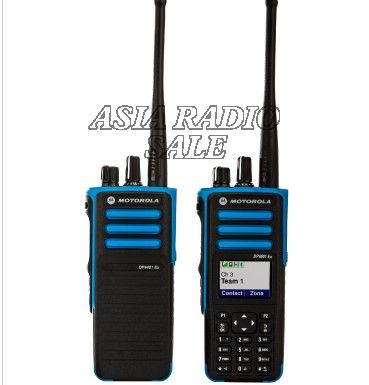

MOTOTRBO DP4401 EX

MOTOTRBO DP4401 EX ATEX PORTABLE TWO-WAY RADIO Keeping You Safer in the Toughest Environments.

Overview









Supply Ability

Supply Ability 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

Package Content
1 x Host
1 x Li-ion Battery Pack
1 x Antenna
1 x Belt Clip
1 x Use's Manual1 x Desktop Charger

Picture Example:



Lead Time:

Quantity(Pieces)	1 - 100	101 - 500	501 - 1000	>1000
Est. Time(days)	5	10	15	To be negotiated















picture:

Features

Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital portable radio stands out.

The DP4401 Ex ATEX-certified portable delivers unrivaled voice and data communications with integrated GPS plus best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the DP4401 Ex digital portable two-way radio is easy to use and features up to 32 channel capacity, three programmable buttons, emergency button, mandown and lone worker functions and IP67 specifications for submersibility.





Features

Best-in-class Audio

Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level

Text Messaging

Send preprogrammed update messages to team members when radio communications need to be delivered without interrupting workers or guests

Integrated GPS

Locate mobile work teams using integrated GPS

Emergency Button

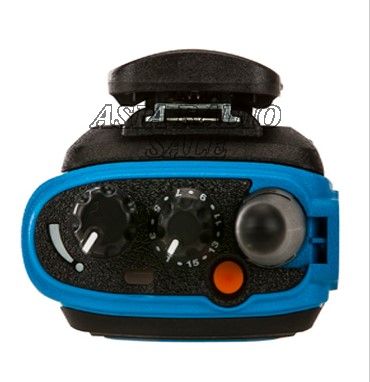

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation

Security

Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption.

Transmit Interrupt

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.



Performance Characteristics

Frequency band

• VHF, UHF

Repeater capable

• Yes

Battery life (based on a 05 05 90 duty cycle)

• 19 hours in digital mode, 16 hours in analogue mode

Standard battery chemistry type

• Lithium Ion

1 Watt

• Yes

Physical Characteristics

Emergency button

• Yes

Keypad

• None

Display

• No display

Weight (With 1400mAh LiIon battery)

• 455.5g (16.1 oz)

Dimensions H x W x D (with standard battery)

• 138.5 x 56.7 x 37.8 mm (5.45 x 2.23 x 1.49 in)

Radio Features

Transmit interrupt

• Yes

Digital private line

• Yes

Private line

• Yes

Monitor Permanent (Sticky) Monitor

• Yes

Lone worker

• Yes

GPS operation

• Yes

Voice announcement

• Yes

Signalling

• DMR, PL/DPL, MDC, Quik-Call II, 5-tone

Intelligent audio

• Yes

Programmable buttons

• Yes

Voice operated transmit (VOX)

• Yes

Time out timer

• Yes

Talkaround

• Yes

Scan types

• Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

Group call

• Yes

One to one calling

• Yes

Missed call alerts

• Yes

CPS (Customer Programming Software)

• Yes

Channel spacing

• 12.5, 25, 20

Number of channels

• 32

Channel scan

• Yes

Call tones

• Yes

Call forward

• Yes

Busy channel lockout

• Yes

Integrated voice and data

• Yes

Technology

System type

• TDMA, Capacity Plus, Linked Capacity Plus, IP Site Connect

Digital technology

• Yes

User Environment

ATEX IECEx

• Yes

Submersible

• Yes

Mil spec

• 810 C, 810 D, 810 E, 810 F, 810 G

Noise reduction software

• Yes

IP Standards

• IP67

Warranty

Description



 Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital radio stands out.

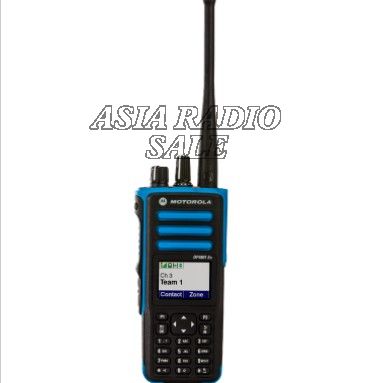

The fully-featured DP4801 Ex ATEX/IECEX-certified portable delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the DP4801 Ex features a 5-line display, full keypad, up to 1,000 channel capacity, five programmable buttons, emergency button, man down and lone worker functions and IP67 rating for submersibility.
