  Home >> -Radio Accessory(Mobile) >> Diamond >> AN/PRC-152A(UV) 5w military walkie talkie dual band ham tactical radio

AN/PRC-152A(UV) 5w military walkie talkie dual band ham tactical radio [Comments(0)|Leave your Comment]
Brand:Diamond
Item#:12071101482776
Score:6  (Score change Discount Voucher)
Weight:.35 kg.
List Price:$150.00
Price:$95.00
You Save:$55.00
Qty:

Prev:icom ic-2300H car radio mobile radio,vehicle radio

Next:AN/PRC-152A(UV) 5w military walkie talkie dual band ham tactical radio

detail

Related

Comment

Payment

Shipping

AN/PRC-152A(UV) 5w military walkie talkie dual band ham tactical radio


Packaging & Delivery

  • Packaging Details

  • Box Included:
    1* Radio
    1* Antenna
    1* Antenna Base

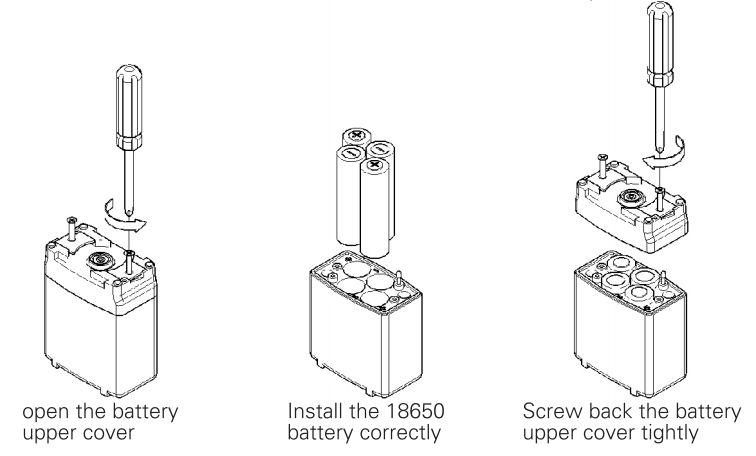

    1* Battery box(exclude battery)
    1* Charger
    1* Screwdriver
    1* Adaptor
    1* User Manual
  • Port

  • Xiamen
  • Picture Example:

  • package-img

Products Description

PRC-152A

PRC-152A is a very suitable tool for military use, or can be used as an off-road equipment. The 5W dual-segment machine has good encryption and can protect the security of your call. Has a sturdy body, IP67 high-level waterproof and dustproof. The call distance can reach 3-5 kilometers, and it is your good partner for outdoor travel.

Spcifications

Frequency range

VHF 136- 174MHz & UHF 400- -480MHz

Frequency sensitivity

± 2.5ppm

Rated voltage

7.4V DC ± 20%

Memory channel

128 channel

Allocation

Pupinization antenna

Antenna impedance

50

Working dimension

Same frequency single working ordifferent frequency singie working

Dimension

105* 56*35MM (No allocation)

Transmitter

Moduliaion mode(Wide/Narrow band)

16K C F3E/11K C F3E

Maximum frequency deviation(Wide/Narrow band)

≤ 5kHz/≤ 2.5kHz

Adjacent Channel Power(Wide/Narrow band)

> 70dB>62dB

Spurious outputpower

≤7.5uW

Pre-emphasis characterstic

6dB/Increase per octave

Transmitt current

≤1.6A

CTCSS/DCS(Wide/Narrow)

0.75kHz ±0.1kHz, 0.4kHz ±0.1kHz

Modulation sensitivity

8- 12mV

Audio distortion

≤5%

Receiver

RF sensitivity

≤ -0.2uV≤ -0.25uV

Audio frequency power

500mW/10%

Audio distortion

≤5%

Obstruct

> 85dB

Intermodulation

> 65dB> 60dB

Selectivity

>70dB>60dB

Spurious rejection

> 65dB

Recommend Products

Our Advantages

Production details

Warranty

12 months for body radio; 6months for accessories.

Sample time

If with our logo,within 3 days.Please if you need,please contact us at soon as possible.

Cooperatively

OEM service is offered,we can design packing box and logo mark as your requirement.

Payment term

T/T,Western Union,Paypal and Trade Assurance.

FAQ

Q. Why sometimes your partner's voice is intermittent?

A. Please note that you are within normal communication range, If you want use radio in distance range, please change otherantenna


Q. Can't turn on talky and even it is switch on, it often shuts off automatically?

A. Please check the battery contacts on the walkie talkie. If it is broken or twisted, please return the radio to your
authorizeddealer for maintenance during warranty.

with a bigger output power.If still same problem, please send the radio back to your authorized dealer repair.


Q. Why sometimes received voice from other groups?

A. Two way solutions.You can change another channel or change another channel frequency by PC software.


Q. Can't transmit or receiver signal with other members?

A. First, please verify that the channel frequency and the CTCSS you are used the same as those of your group members. Please make
sure that you and your partners are all within the radio coverage, If the channel frequency and the CTCSS are the same.


Q. Which is better – VHF or UHF?

A. Depends on the terrain. The UHF signal is attenuated or absorbed by foliage, rough terrain and trees, VHF does better
outdoors.The VHF has difficulties penetrating steel and concrete, UHF does better in and around buildings. If you use the radios
in bothenvironments, we prefer using UHF band.
